Features and Benefits

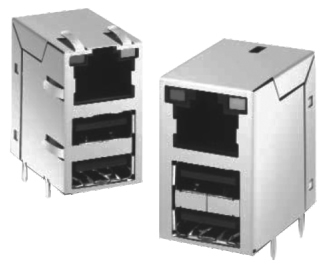

Surface mount RJ45/Dual USB Combo is a through Hole integrated connector, with a single RJ45 in Combinationwigh 2USB Ports The internal magnetics are designed to support 10/100 /100Base-TX applications such as LAN-0N-Motherboard(L0M),Hub and Switches.
Features and Benefits
· LAN interface suitable for 10/100/1000 Base-TX applications
· Available with and without LEDs
· RJ45/USB stacked design saves on PCB real estate
· USB module complies with USB 2.0 standaards and meets CAT5 Fase Ethernet industry performance standard
· Internal magnetics are 100% electrically tested for Hi-POT and functionality
Electrical Performance Summary
· Internal magnetics options available
· Meets or exceeds IEEE 802.3i/u/ab and ANSI X 3.263 standards
· 350 µH minimum OCL with 8 mA DC bias current
· Hugh Performance for maximum EMI suppression
· Minimum 1500 Vrms isolation per IEEE 802.3i/u/ requirement
Electrical Specifications @25oC-Operating Temperature 0oC to 70oC
Knot the compostition
|
