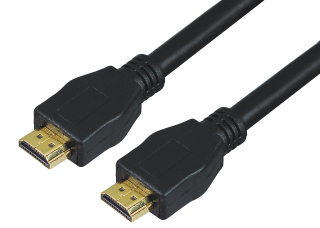

HDMI Cable

Features：
· HDMI cable with Free angel plug.
· High End Assembly Type HDMI Cable.
· Both with or Without Nylon mesh are OK.
· Available in customized blister packaging.
· 1080p supporting; V1.3c and RoHs compliance.
· Designed for high frequency digital signals.
· Fully backward-compatible with DVI that handles digital transfers at rates up to 10Gbps.

Electrical：
· 100% open & short test
· Hi-Pot：DC 300V 10ms
· Insulation Resistance：10M OHM MIN。

Contact Resistance：
· 30&28AWG cable：2.0 OHM Max。
· Working Temperature:-25^oC-+85^oC

Mechanical：
· Insulator Material：PVC & PE Low Density
· Contact：Copper Alloy.
· Insertion Force：44.1N Max.
· Withdraw Force：9.8 N Min.
